In the ever-evolving landscape of warehouse automation, efficiency, speed, and reliability are key. One of the most innovative solutions transforming the industry is Addverb’s Multi Pro mother child shuttle system. This cutting-edge technology enhances the intralogistics process, ensuring optimal storage and retrieval operations.
In this blog, we’ll explore what makes the Multi Pro shuttle system a game-changer and how it can revolutionize warehouse management.
What is the Mother Child Shuttle System?
The mother child shuttle system is a sophisticated robotic solution designed to automate the storage and retrieval of goods in warehouses. The system comprises two main components:
Mother Shuttle: This is the primary vehicle that navigates the aisles of the warehouse.
Child Shuttle: A smaller, secondary vehicle that resides within the mother shuttle and performs the actual task of picking and placing goods.
Combining these two elements allows for a highly flexible and efficient approach to handling goods, especially in high-density storage environments.
It is designed to optimize the space used within the warehouses to obtain higher productivity and efficiency. This system integrates the automated hardware with the software for accurate picking and replenishment. This results in a reduction of inventory level and material handling inconveniences while increasing the productivity and accuracy of the warehouse as compared to manual storage systems.
How does it Function?

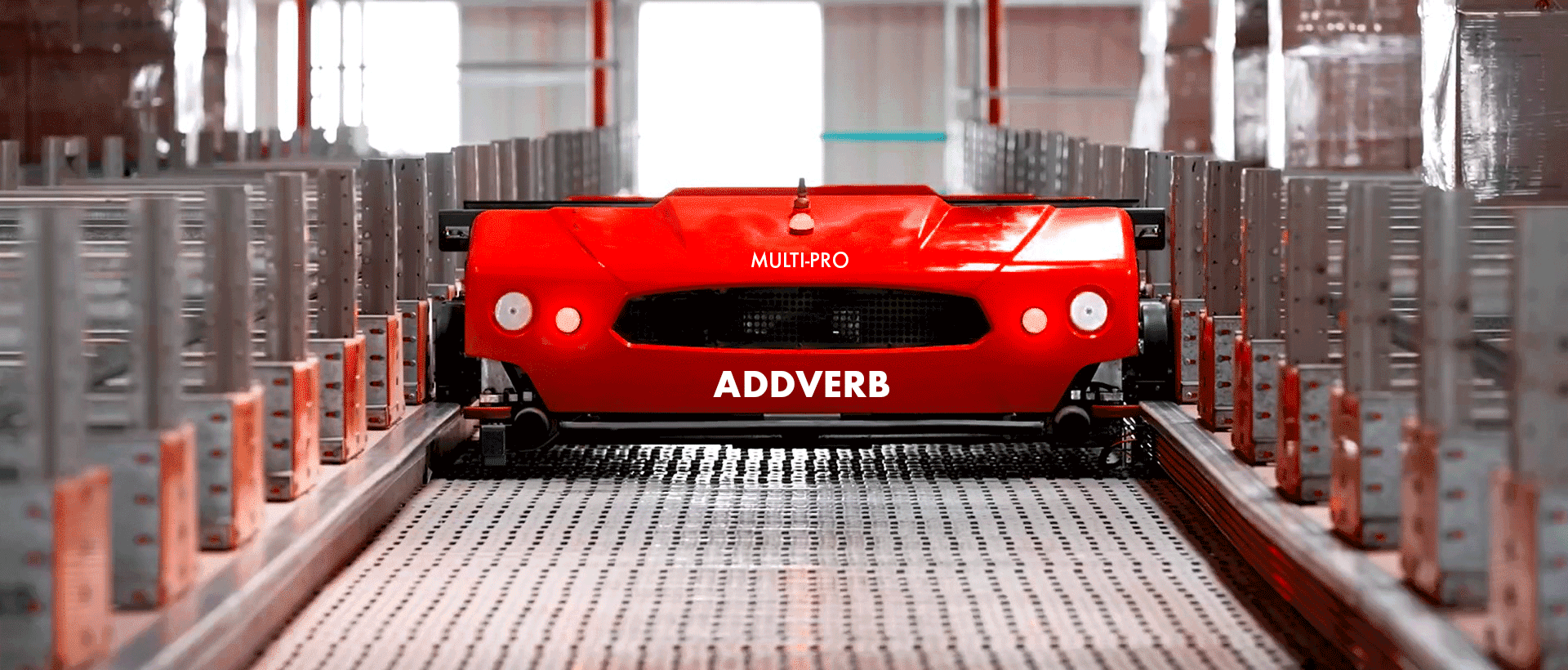

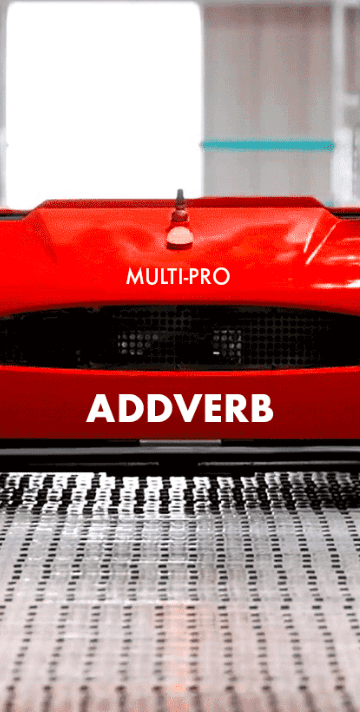

The mother child Pallet shuttle system is a fully automated and equally versatile storage and retrieval mechanism for multi-deep pallet storage. It consists of a Mother shuttle powered by a bus bar, which runs on a track perpendicular to the pallet storage in the racking system. It has a pallet shuttle aka child in it which performs the function of storage and retrieval.
This system is integrated with vertical lifts that carry the load to its destined position. Once the vertical lift reaches its designated position, the mother shuttle reaches there along with the child. The child takes the load and gets inside the Mother shuttle to again move on the track to reach the next destination. Retrieval of loads also happens through the same process.
- Every loading level has one mother and one child aka pallet shuttle which can go up to 15 levels high.
- In this system, the Mother shuttle offers a carrying speed of up to 3 m/s, and the child gives a speed of 0.8 to 1.1 m/s with an acceleration of 1.5 meters per second squared.
- The Lift offers a throughput of 60 to 70 pallets /hour.
- It has a high load-carrying capacity. The whole system can carry a load of up to 1500kgs.
- With a fast battery charger, it can get charged in 30 minutes and lead a cycle of 10 hours.
- It involves advanced safety and accuracy features that provide 100% accuracy in the positioning of the load and the pallet.
Benefits of Mother Child Shuttle System (AS/RS)
Industry 4.0, individualization, and digitalization are making such storage technology more important than ever, especially in retail, e-commerce, and multi-channel. The mother child pallet shuttle system is suitable for multi-deep storage and provides high throughput & facilitates storage up to 10 pallets per square meter. You can avail of the benefits mentioned below by adopting a Mother-child shuttle system in your warehouse:
Increased Storage Density
By utilizing vertical space more effectively, mother child shuttle system maximizes storage capacity. This is particularly beneficial for warehouses with limited floor space but significant vertical height.
Enhanced Accuracy and Reliability
Automation reduces the likelihood of human error, ensuring more accurate inventory management. The system’s reliability also means fewer disruptions and downtime, leading to smoother operations.
Improved Safety
Automation minimizes the need for human intervention in potentially hazardous areas, thereby improving overall workplace safety. Workers can focus on supervisory and maintenance roles rather than physically demanding and risky tasks.
Cost Savings
While the initial investment in a mother-child shuttle system may be significant, the long-term savings in labor, operational efficiency, and reduced error rates provide a substantial return on investment.
Click here to learn more about ASRS systems and their types.
Key Features of Addverb’s Multi Deep Shuttle AS/RS
Scalability: One of the standout features of the Multi Pro shuttle system is its scalability. Warehouses can start with a small number of shuttles and gradually expand as their needs grow. This scalability ensures that businesses can optimize their operations without a massive upfront investment.
High Throughput: The system is designed to handle a high volume of goods, making it ideal for industries with fast-moving inventory. The mother-child configuration allows for simultaneous operations, significantly increasing throughput and reducing cycle times.
Flexibility: The Multi-deep ASRS system can adapt to various warehouse layouts and is compatible with different types of storage units, including cartons, totes, and pallets. This flexibility ensures that the system can meet the specific needs of different businesses.
Intelligent Navigation: Equipped with advanced sensors and navigation algorithms, the Multi Pro shuttles can navigate complex warehouse environments with precision. This intelligent navigation reduces the risk of collisions and ensures smooth operations.
Energy Efficiency: Addverb has engineered the Multi Pro system to be energy-efficient, utilizing regenerative braking and other technologies to minimize power consumption. This not only lowers operational costs but also aligns with sustainable practices.
Conclusion
Mother child Pallet shuttle system represents a significant advancement in warehouse automation. Its combination of scalability, high throughput, flexibility, intelligent navigation, and energy efficiency makes it an ideal solution for modern warehouses looking to optimize their operations. By embracing this technology, businesses can achieve greater storage density, improved accuracy, enhanced safety, and substantial cost savings, positioning themselves at the forefront of the competitive logistics landscape.
If you’re considering upgrading your warehouse automation, the Mother Child or Multi Deep AS/RS shuttle system by Addverb is undoubtedly a solution worth exploring.
FAQ
What is a Multi-deep Pallet shuttle/mother child Shuttle System?
An automated storage and retrieval system (ASRS) where a “mother” shuttle carries a “child” shuttle to store or retrieve items.
How does it work?
The mother shuttle moves horizontally to the designated spot, then the child shuttle moves vertically within racks to handle items.
Which industries benefit?
E-commerce, retail, automotive, pharmaceuticals, and manufacturing.
Typical load capacity?
Varies, but can handle loads from small packages to over 1000 kg.
How does it compare to traditional ASRS?
Offers higher flexibility, scalability, and throughput with better space utilization.
Future advancements?
Enhanced AI and machine learning, improved IoT integration, better energy efficiency, and autonomous navigation.
